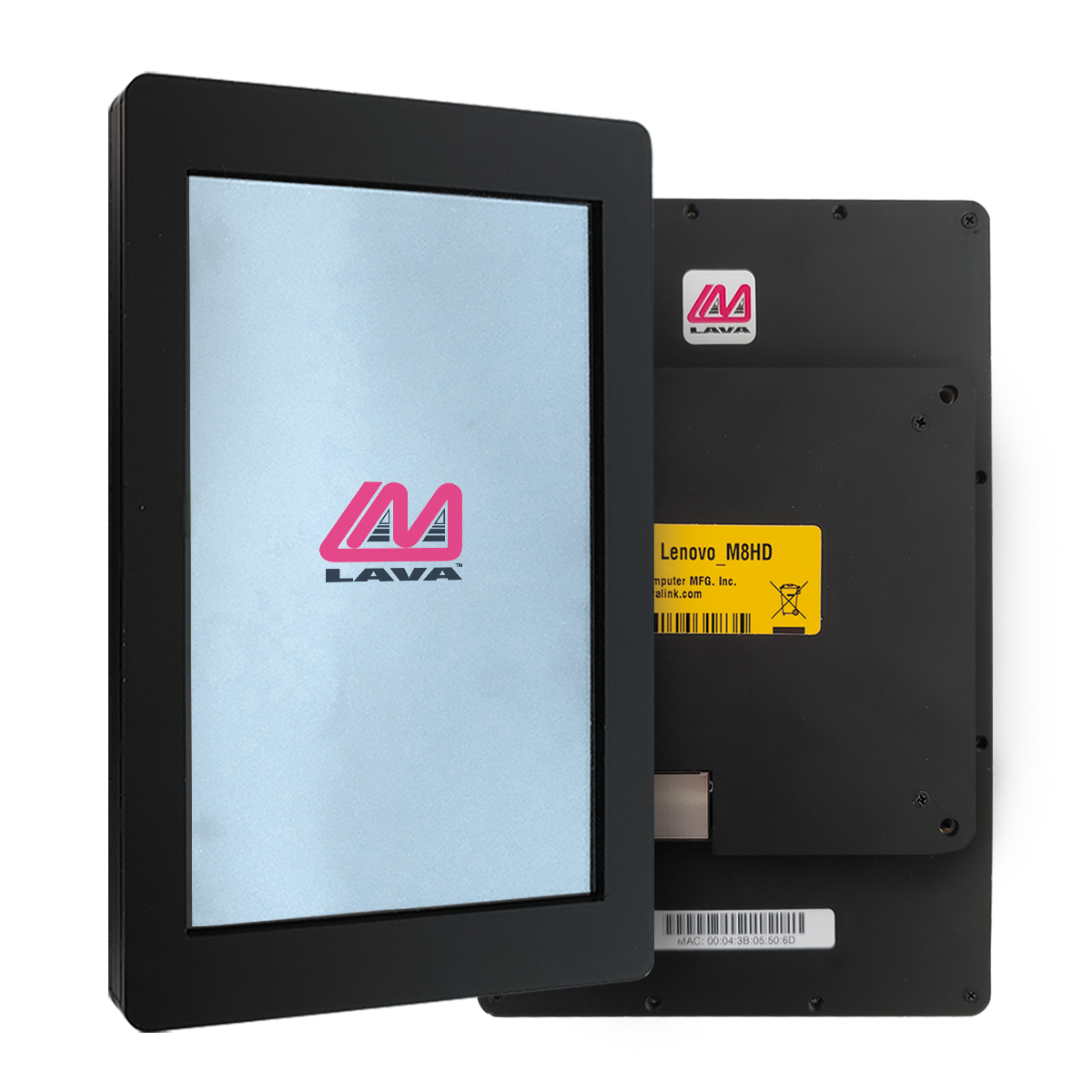

M8 nP2UE Enclosure

Custom enclosure for Lenovo Tab M8 HD (TB-8505F)

$339.99 / Web Price

The M8 nP2UE enclosure provides the Lenovo Tab M8 HD with Power over Ethernet (PoE), Ethernet and two USB ports for peripherals, while also keeping it charged.

PoE provides power and data through the same Ethernet cable. This allows you to place the Lenovo Tab M8 HD up to 328 ft (100 m) from the power source. It can be installed in locations with no easily accessible AC outlets or in environments where extension cords or dedicated AC lines are prohibited, inconvenient or expensive. The M8 nP2UE is ideal for retail, hospitality, and digital signage applications.





ADDITIONAL INFORMATION



System Requirements

For use with Lenovo Tab M8 HD (Model: TB-8505F) – sold separately

Specifications

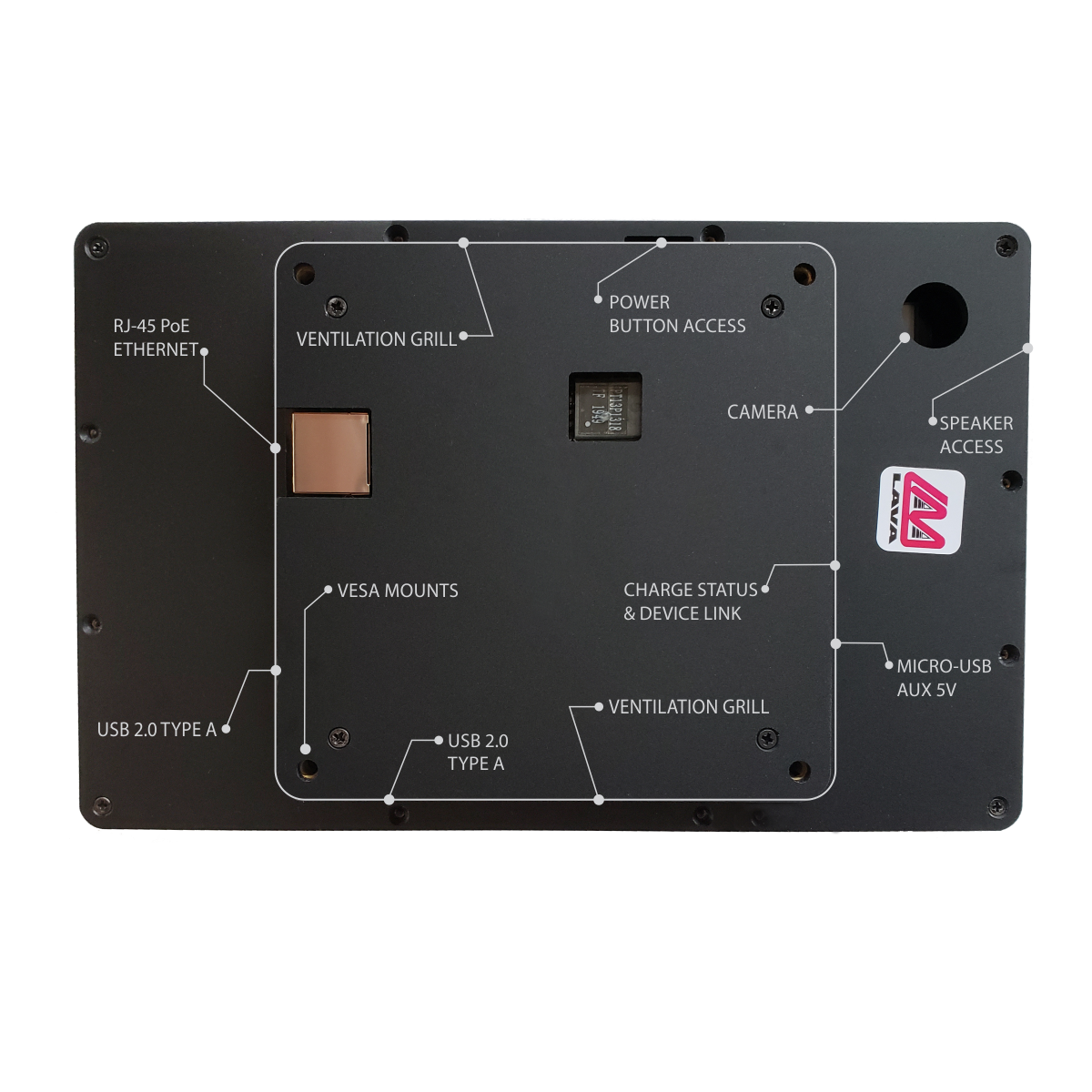

PORTS
1 x RJ45 10/100 capable Ethernet port
2 x USB 2.0 Type A (USB peripherals)
1 x Micro USB-B port (auxiliary 5V power input)
POWER INPUT
Power over Ethernet (13W maximum)
Appears as a Class 0 PoE device
For non-PoE operational use, the Micro USB-B port can be used
(port rated for maximum 5V at 2A input)

Integrated nLTS-P2UE SimulCharge Adapter
Power over Ethernet (PoE) input
10/100 Ethernet
2 USB Peripheral Ports
Portrait or landscape mounting option
VESA mounting holes (100mm)
LAVA Limited Warranty

RELEVANT ARTICLES & INSIGHTS

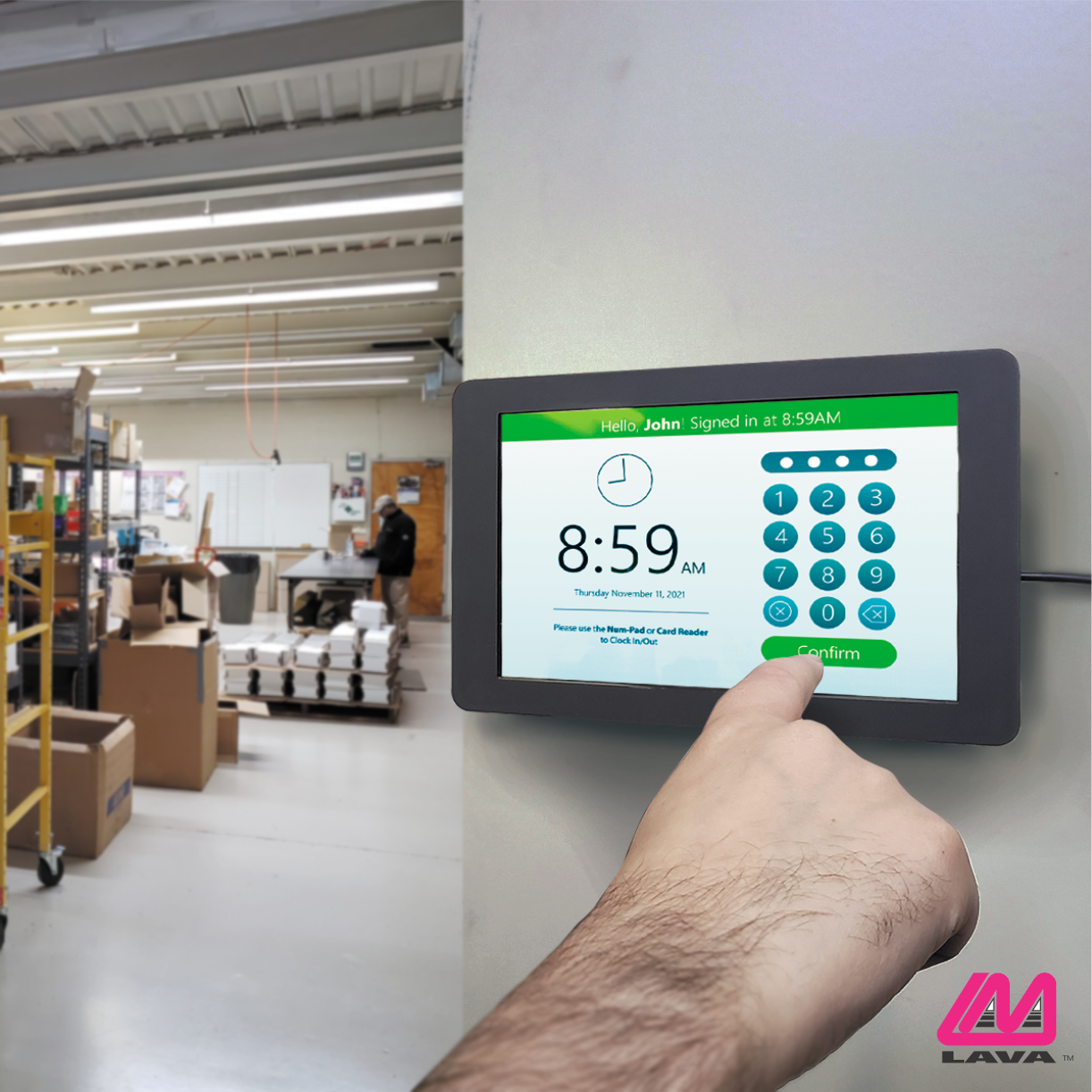

Tablet-based Staff Time Clock – M8 nP2UE

29 November, 2021

Many employees at warehouses, factories and other industrial settings have traditionally used punch clocks to check in for their shifts...

Read more

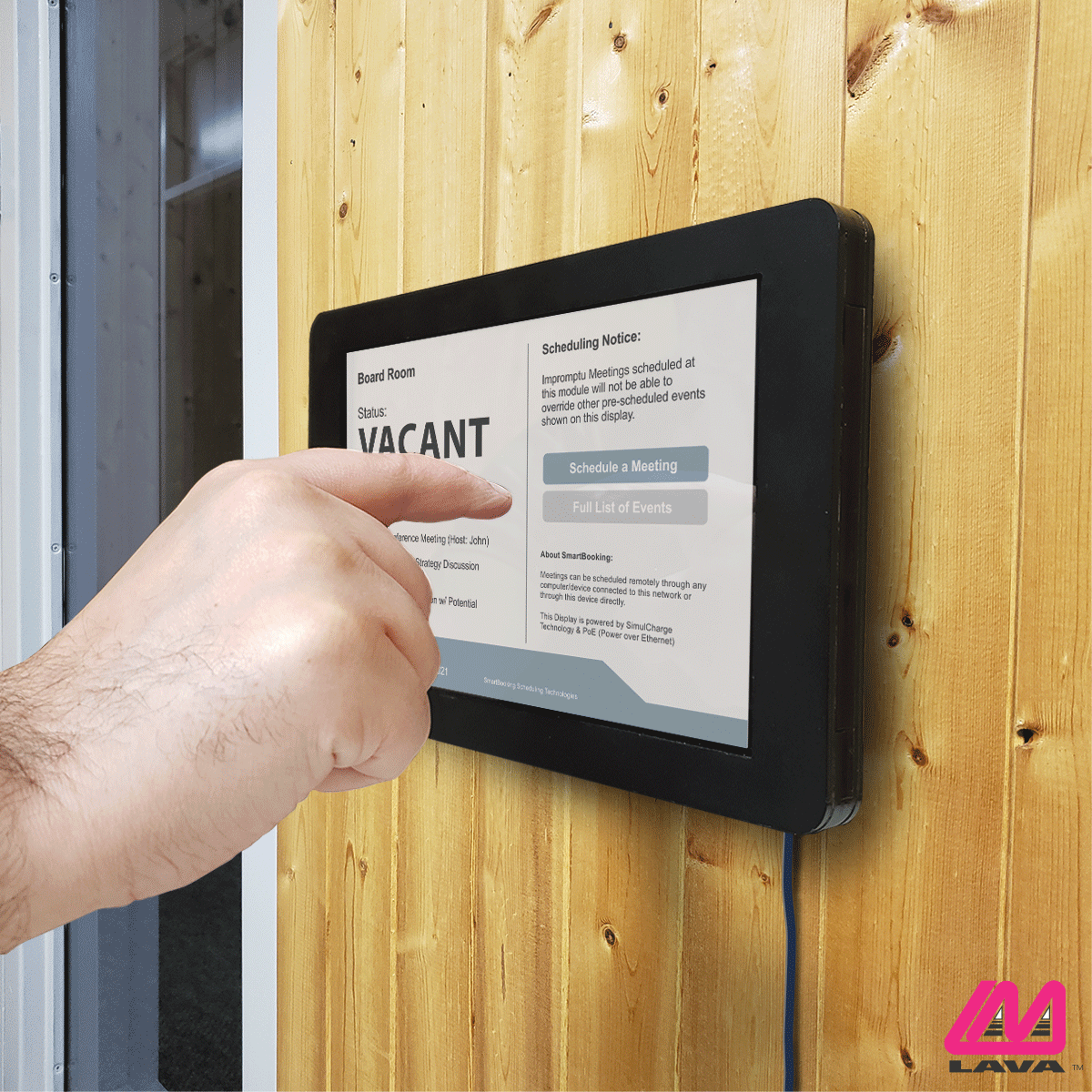

Off-the-Shelf Tablet-Based Digital Signage

24 November, 2021

The M8 nP2UE is a good option for digital signage in hospitals, malls and other locations. While not a huge screen, the Lenovo tablet's...

Read more

Tablet-Based Contact Tracing with the M8 nP2UE Enclosure

21 November, 2021

The M8 nP2UE enclosure and Lenovo tablet can provide a streamlined solution for contact tracing in schools and other...

Read more

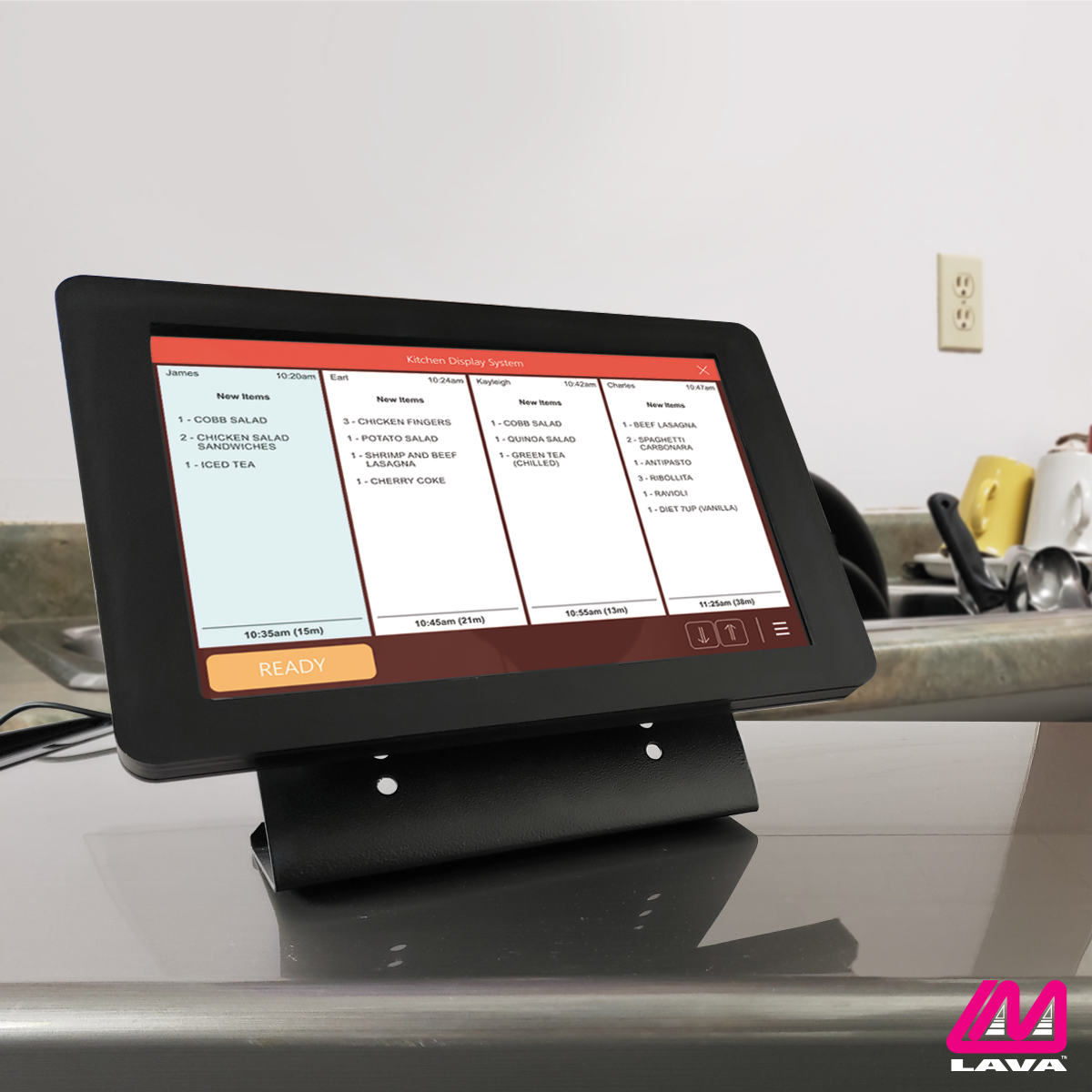

Bad Wi-Fi in your Kitchen? A Tablet-Based Solution
