nLTS-2UE

SimulCharge™, Ethernet, 2 x USB Adapter for Lenovo Micro USB Tablets

$79.99 / Web Price

The nLTS-2UE provides compatible Lenovo Micro USB tablets with simultaneous charging and access to data. It has an Ethernet port, two USB-A ports for peripherals and Docking Detect technology.

The SimulCharge™ adapter provides a reliable 10/100-capable wired network connection through the Ethernet port and its USB-A ports can support two peripherals, such as a scanner and printer.


PRODUCT DESCRIPTION

The nLTS-2UE SimulCharge™ adapter for Lenovo Micro-USB tablets has wired Ethernet connectivity, two USB-A ports for peripherals and Docking Detect technology. SimulCharge™ lets tablets operate as a USB Host controller while simultaneously being charged.

The nLTS-2UE’s Ethernet port provides a reliable 10/100-capable wired network connection and its USB-A ports allow you to connect up to two peripherals, such as a scanner and printer.

Docking Detect ensures the “greeting” protocols between the SimulCharge™ adapter and mobile device are executed correctly and consistently every time they are connected. This allows the adapter to be a plug-and-play technology that ensures the mobile device always operates in USB Host mode.

The adapter comes with a casing and a Micro USB to Micro USB cable to connect the tablet. The Micro USB-B power port is rated for the standard 5 volts at 2 amps. It is recommended to use the charging cable that came with the tablet. A separate power supply is not included.

The nLTS-vc2UE is not compatible with all Lenovo tablets.
Please see the list of tested Lenovo devices.

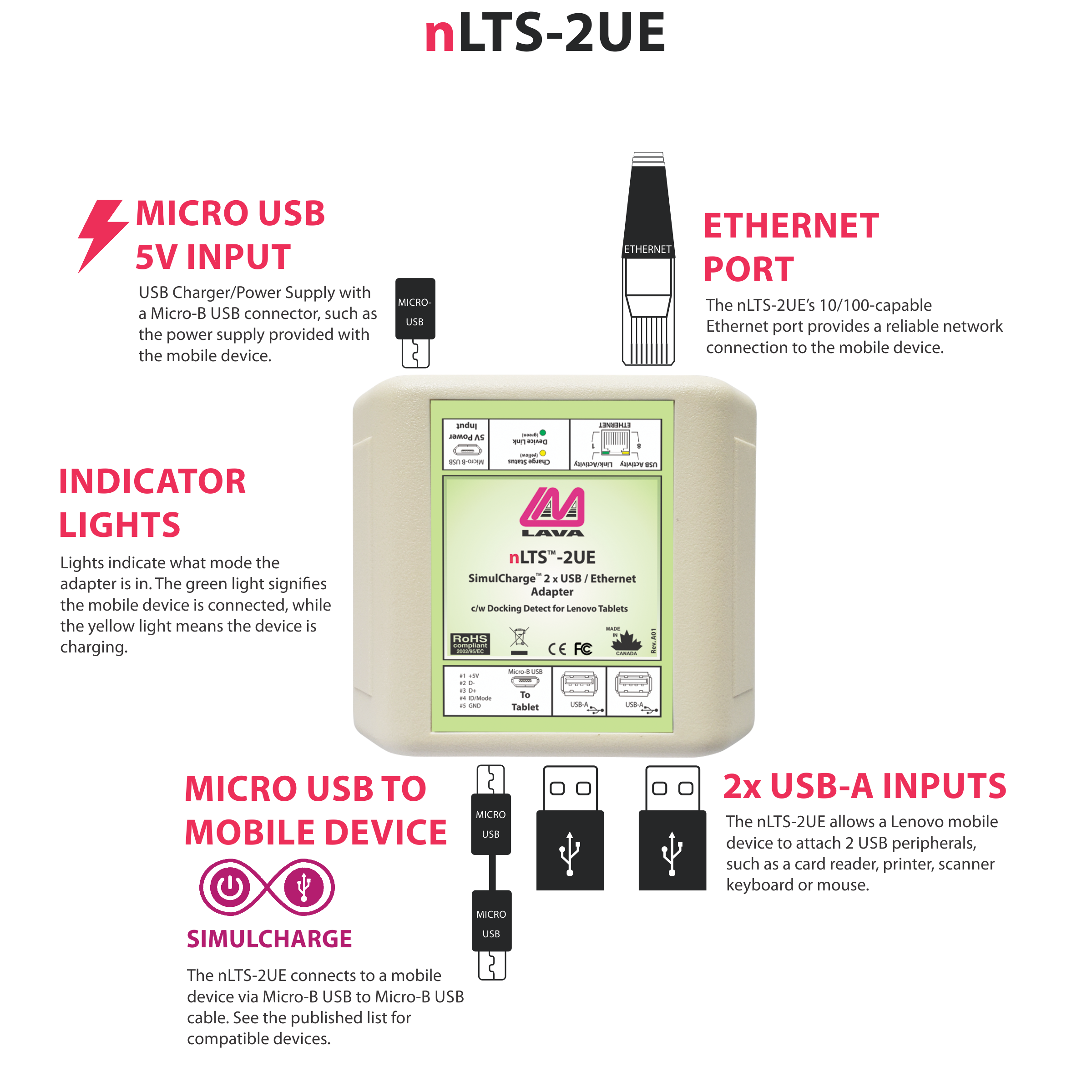

nLTS_2UE_PortClarification_A01nLTS_2UE_PortClarification_Board_A01

ADDITONAL INFORMATION




System Requirements


Specifications

CABLES
1 x Micro USB to Micro USB cable (3.3 ft / 1 m) to the tablet.
Note: The cable is included with the adapter.
PORTS/CONNECTORS
1 x RJ45 10/100 Ethernet port (LAN)
2 x USB A port (for USB 2.0 accessories)
1 x Micro USB port (for tablet connection)
1 x Micro USB-B port (the Aux. 5V input)
1 x Charge status LED
1 x Device Link LED
1 x Ethernet Link/Activity LED
1 x Tablet USB Activity LED
POWER INPUT
USB Charger/Power Supply with a Micro USB connector, such as the power supply provided with the mobile device.
Any regulated 5 volt power supply capable of at least 2 amperes can be used.
MEASUREMENTS
Depth: 4.96 inches (126 mm)
Width: 3.8 inches (97 mm)
Height: 1.69 inches (42 mm)
Weight: 4.3 oz

Features


Applications

POINT OF SALES
Product Catalogues
Price Checking
Line Busting & Ticketing
POS systems
Menus, order taking
Transportation & Logistics endpoints
Digital Signage
WORKFORCE MANAGEMENT
Conference Room Scheduling
Timecard
Dispatching
In-vehicle data capture
Virtual Concierge
Patient Check In
KNOWLEDGE SHARING
Web/Video conferencing
Trade Show Guides
Customer Surveys
Remote control
Way-finding
QUALITY CONTROL
Material tracking
Production
Scheduling
