SimulCharge™ 1 x USB Hub with Docking Detect for Samsung Tablets
$54.99 / VC Option $69.99

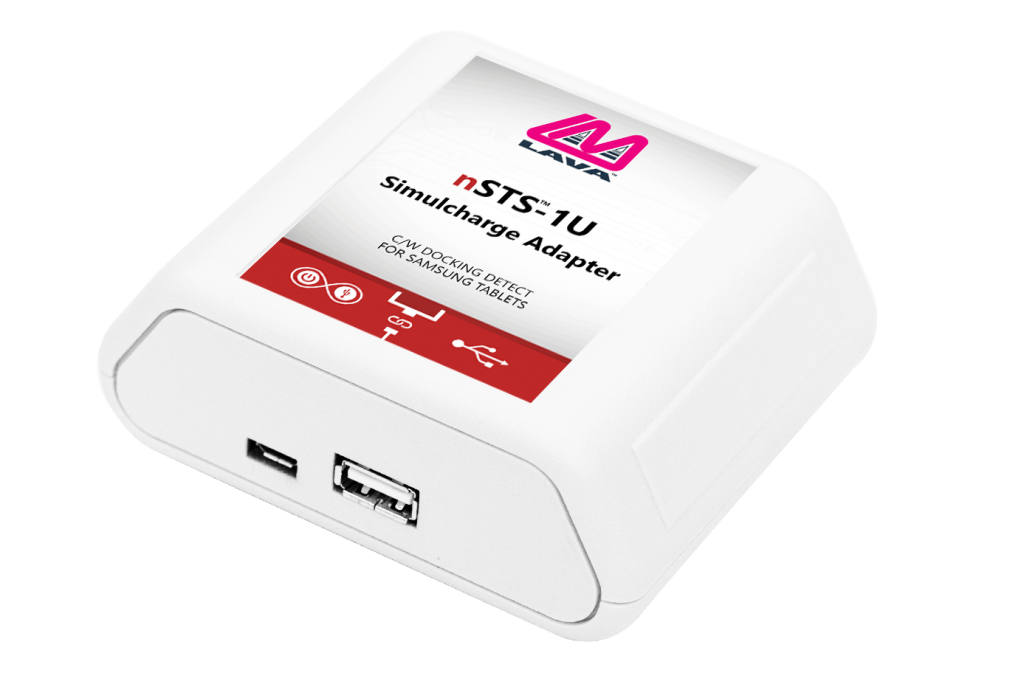

The nSTS-1U is an adapter for Samsung tablets that features one USB 2.0 (Type-A) port, SimulCharge technology that lets tablets charge and at the same time support USB peripherals, and the newest LAVA development adds Docking Detect for automatic tablet and LAVA board connection. The adapter comes with an enclosure.
Sales Contact: firstname.lastname@example.org
Have a Question? Call: 1-800-241-5282 (US & Canada) or 1-416-674-5942
AVAILABLE WITH AN OPTIONAL BUILT-IN VOLTAGE CONVERTER.
Allows an external 9 V up to 36 V DC power supply to be placed up to 50 feet away from the tablet.
The nSTS board is ideal for situations where tablets need power and the ability to support USB accessories in a situation when power sequences cannot always be followed. If you intend to plug your tablet solution in and out of power often, this board will meet your installation requirements.
The nSTS-1U operates a tablet in SimulCharge mode. This technology allows the charging of the selected Samsung tablets while interacting with USB accessories.
The Docking Detect feature ensures that when the adapter is plugged into the tablet, the tablet recognizes that the adapter is present. This feature is a re-imagined form of Plug-n-Play; when the tablet solution, the tablet along with the adapter, is plugged into or out of power, the tablet will know.
LAVA adapters allow a Samsung tablet to be integrated into a kiosk installation with multiple USB devices such as magnetic card readers, NFC readers, printers, barcode scanners, keyboard, and other USB-enabled peripherals.
- Simultaneous USB host and charging for selected Samsung tablets
- Docking detect for a tablet connection
- Works with out-of-the-box (unrooted) tablets
- Powered by a standard USB Charger/Power Supply through a Micro USB-B receptacle
- Available with an optional built-in voltage converter.
- Can be powered by a USB Battery Pack (aka Power Bank)
- 1 x USB 2.0 port
- Prevents power drain from the tablet to USB peripherals in the event of power loss
- Adapter enclosure included
- LAVA Limited Warranty
nSimulCharge™ 1U for Samsung Tablets
|Tablet:||See the tested devices list|
|Power Supply:||USB Charger/Power Supply with a Micro USB-B connector, such as the power supply provided with the Galaxy tablet. Any regulated 5 volt power supply capable of at least 2 amperes can be used.
When using the optional Barrel Jack, an unregulated 12V up to 24V DC power supply is recommended.
|Measurements:||Depth: 3.3 inches (83 mm)
Width: 3.8 inches (97 mm)
Height: 1.7 inches (44 mm)
Weight: 4.1 oz
POINT OF SALES
- Product Catalogues
- Price Checking
- Line Busting & Ticketing
- POS systems
- Menus, order taking
- Transportation & Logistics endpoints
- Digital Signage
- Conference RoomScheduling
- In-vehicle data capture
- Virtual Concierge
- Patient Check In
- Web/Video conferencing
- Trade Show Guides
- Customer Surveys
- Remote control
- Material tracking
1 x Micro USB B to Micro USB B cable (8”/20 cm)
Note: The custom 8”/20 cm cable connects the device to the tablet. This cable may not be extended.
1 x USB A port (for USB 2.0 accessories)
1 x Micro USB B port (for Tablet connection)
1 x Micro USB B port (the 5V power input)
1 x Charge State indicator LED
OPTIONAL FOR A BUILT-IN VC:
1 x Barrel (2.0 mm) DC Output Connector (center pin positive)
