Battery Modulation Adapter for Samsung Tablets

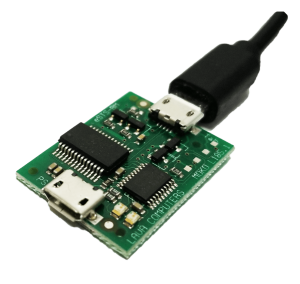

The eSTS-BM-OEM adapter is a core component of an extended version of STS boards’ family. It features the RBM technology for the Battery Modulation and Screen Brightness Management for the Samsung tablets.
The eSTS-BM-OEM uses a standard USB power supply provided with the tablet.
Sales Contact: firstname.lastname@example.org
Have a Question? Call: 1-800-241-5282 (US & Canada) or 1-416-674-5942
- Designed for commercial/OEM use with selected Samsung Tablets
- Battery Modulation for tablet longevity
- Screen Brightness control for reduced heat generation
- Support for installations running 24/7
- Powered by a standard USB Charger/Power Supply through a Micro USB-B receptacle
- Maintenance resets of tablet and module hardware
- Can be powered by a USB Battery Pack (aka Power Bank)
- eSTS Mode and Charge State status indicator lights
- LAVA Limited Warranty
Simulcharge - the technology that enables possibilities
RBM - the extension that makes them last.
The battery modulation allows the tablet to be repetitively charged up to an upper battery level and then allowed to discharge to a lower battery level. This mimics the standard charge cycles of charging a tablet and then disconnecting the charger before it will start a trickle charging (overcharging).
The BM technology improves battery tablet longevity.
SCREEN BRIGHTNESS MANAGEMENT
The LAVA Tablet Manager lets you control the brightness of the tablet based on a time of the day. This reduces the tablet heat generation, power consumption, and optimizes the brightness for the commercial use.
The STS-1U-OEM can be used on its own, or as part of a third-party enclosure solution, supporting a variety of kiosk-type applications.
TO A SWOLLEN
Enjoy the convenience of
safe tablet charging 24/7 for your tablet kiosk.
|Tablet:||See the tested devices list|
|Power Supply:||USB Charger/Power Supply with a Micro USB-B connector, such as the power supply provided with the Galaxy tablet. Any regulated 5 volt power supply capable of at least 2 amperes can be used.|
|Measurements:||Depth: 0.16 inches (4 mm)
Width: 1.10 inches (28 mm)
Height: 0.08 inches (22 mm)
POINT OF SALES
- Product Catalogues
- Price Checking
- Line Busting & Ticketing
- POS systems
- Menus, order taking
- Transportation & Logistics endpoints
- Digital Signage
- Conference RoomScheduling
- In-vehicle data capture
- Virtual Concierge
- Patient Check In
- Web/Video conferencing
- Trade Show Guides
- Customer Surveys
- Remote control
- Material tracking
1 x Micro USB B to Micro USB B cable (8”/20 cm)
Note: The custom 8”/20 cm cable connects the device to the tablet. This cable may not be extended.
1 x Micro USB B port (for Tablet connection)
1 x Micro USB B port (the 5V power input)
1 x eSTS Mode indicator LED
1 x Charge State indicator LED
Hundreds of hours of testing, and many months of design work, in-depth field trials, and close collaboration with Samsung has gone into developing LAVA SimulCharge solutions for Galaxy tablets. Designed for lifetime performance, each LAVA device is individually tested and covered by the LAVA’s industry-leading warranty.
