1-PORT SYNC™ USB ADAPTER WITH DOCKING DETECT FOR USB-C MOBILE PHONES AND TABLETS
The LAVASynC 1U is the second generation of our SimulCharge adapters and is designed specifically for USB-C type Samsung mobile phones and tablets.
This adapter provides a complete connectivity solution by using our custom SynC™ technology to simultaneously charge and support USB peripherals while they are connected to a mobile phone or tablet. The Docking Detect add-on enables automatic connection between the LAVA board and the device.
Available with an optional built-in voltage converter. Allows an external 9 V up to 36 V DC power supply to be placed up to 50 feet away from the tablet. To order, please call +1 800 241 5282 or contact us HERE for availability.
Sales Contact: firstname.lastname@example.org
Have a Question? Call: 1-800-241-5282 (US & Canada) or 1-416-674-5942
The LAVASynC 1U operates a mobile device in SynC mode. This technology allows the charging of the select USB-C type mobile phones and tablets while interacting with USB accessories.
The Docking Detect feature ensures that when the adapter is plugged into the mobile phone or tablet, the mobile device recognizes that the adapter is present. This feature is a re-imagined form of Plug ‘N Play; when the mobile solution, the mobile phone and tablet along with the adapter, is plugged into or out of power, the mobile device will know.
➤ Simultaneous USB host and charging for select mobile devices
➤ Docking detect for a mobile phone or a tablet connection
➤ Works with out-of-the-box (unrooted) mobile phones or tablets
➤ Powered by a standard USB Charger/Power Supply through a Micro USB-C receptacle.
➤ Can be powered by a USB Battery Pack (aka Power Bank)
➤ Prevents power drain from the tablet to USB peripherals in the event of power loss
➤ 1 x USB 2.0 Type A port
➤ LAVA Limited Warranty
LAVASynC™ 1U for Samsung Mobile Devices
|Mobile Devices:||See the tested devices list|
|Power Supply:||USB Charger/Power Supply with a USB-C connector, such as the power supply provided with the mobile device. Any regulated 5 volt power supply capable of at least 2 amperes can be used.
When using the optional Barrel Jack, an unregulated 12V up to 24V DC power supply is recommended
|Measurements:||Depth: 3.3 inches (83 mm)
Width: 3.8 inches (97 mm)
Height: 1.7 inches (44 mm)
Weight: 4.0 oz
The LAVASync board is ideal for applications where a mobile device needs power and the ability to support USB accessories in a situation when power sequences cannot always be followed. If you intend to plug your mobile solution in and out of power often, this board will meet your installation requirements.
1 x USB C to USB C cable (up to 6.6 ft/2 m) to the mobile phone or tablet.
Note: The cable is not included.

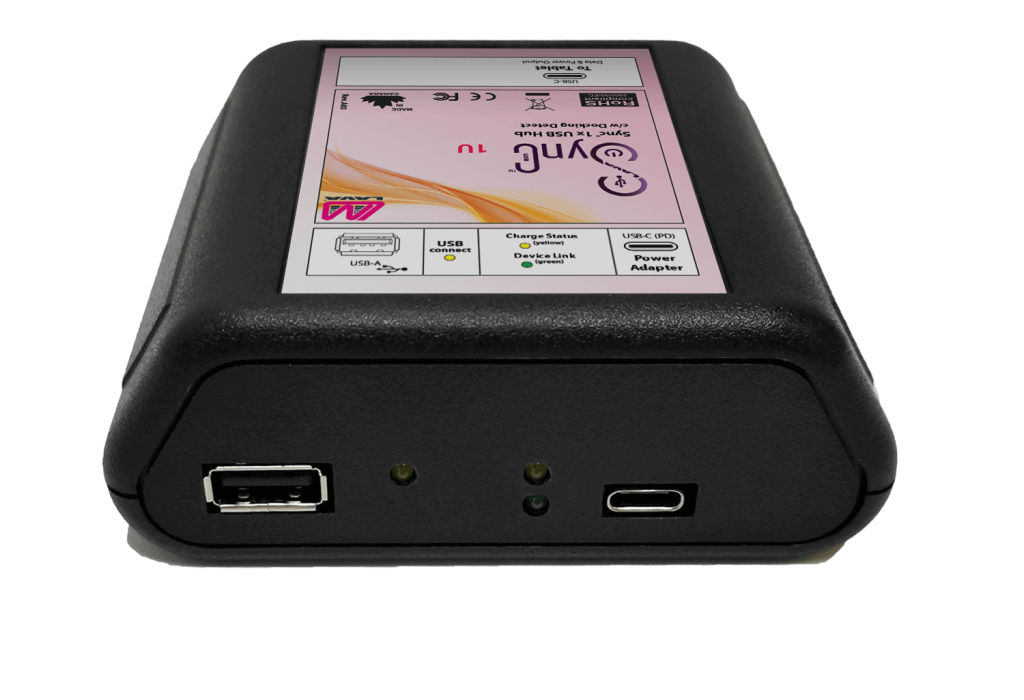

1 x USB A port (for USB 2.0 accessories)
1 x USB C port (for mobile device connection)
1 x USB C port (the power input)
1 x Charge Status LED
1 x Device Link LED
1 x USB Connect LED
1 x Barrel (2mm) DC Output Connector (Center Pin Positive)
