USB-C Ethernet and Data for Samsung
LAVA Member of Samsung Alliance Program

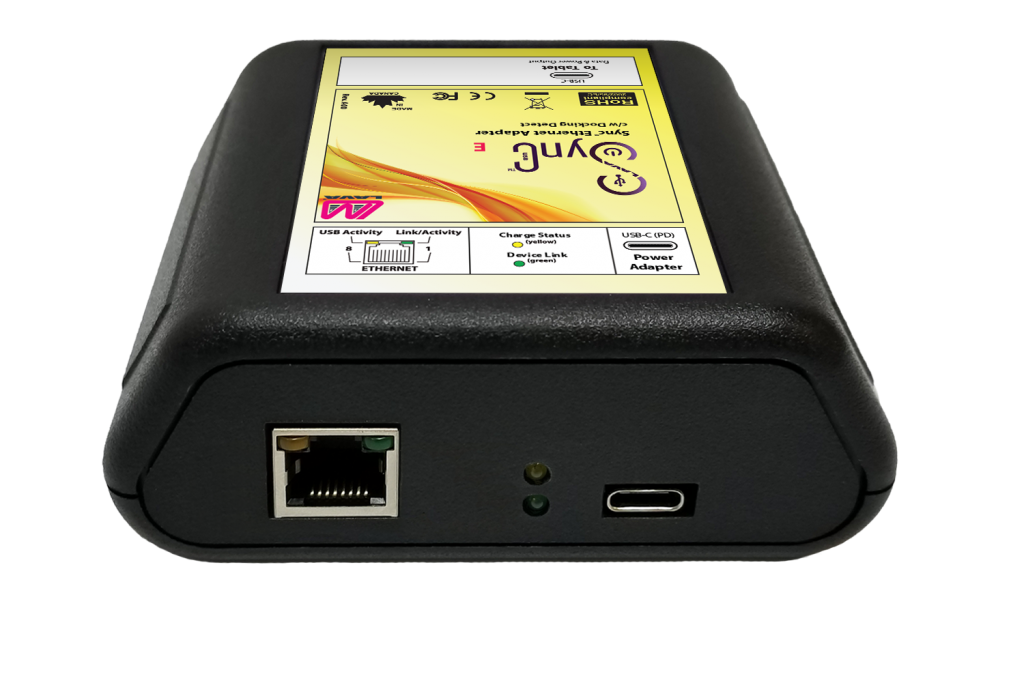

LAVASynC™ E

SYNC™ ETHERNET ADAPTER WITH DOCKING DETECT FOR USB-C MOBILE PHONES AND TABLETS

PRODUCT DESCRIPTION

The LAVASynC E is the second generation of our SimulCharge adapters and is designed specifically for USB-C type Samsung mobile phones and tablets.

This adapter provides a complete connectivity solution by using our custom SynC™ technology to simultaneously charge and support data while they are connected to a mobile phone or tablet. Features Ethernet connectivity, and Docking Detect add-on that enables automatic connection between the LAVA board and the device.

Available with an optional built-in voltage converter. Allows an external 9 V up to 36 V DC power supply to be placed up to 50 feet away from the tablet.

Sales Contact: sales@lavalink.com
Have a Question? Call: 1-800-241-5282 (US & Canada) or 1-416-674-5942

►►► SEE A LIST OF TESTED MOBILE DEVICES

Mobile Sync Technology for USB C

SYNC TECHNOLOGY

The LAVASynC E operate a mobile device in SynC mode. This technology allows the charging of the select USB-C type mobile phones and tablets while interacting with USB accessories.

Samsung Ethernet Adapter

WIRED NETWORK

10/100 Fast Ethernet interface enhances the reliability and the security of the internet connection.

DOCKING DETECT

The Docking Detect feature ensures that when the adapter is plugged into the mobile phone or tablet, the mobile device recognizes that the adapter is present. This feature is a re-imagined form of Plug ‘N Play; when the mobile solution, the mobile phone and tablet along with the adapter, is plugged into or out of power, the mobile device will know.

FEATURES

➤  Simultaneous charging and data host for select mobile devices
➤  Docking detect for a mobile phone or a tablet connection
➤  Works with out-of-the-box (unrooted) mobile phones or tablets
➤  Powered by a standard USB Charger/Power Supply through a Micro USB-C receptacle.

➤ Wired Networking (10/100 Ethernet) support
➤ Prevents power drain from the tablet to USB peripherals in the event of power loss
➤ Built-in voltage controller (OPTIONAL)
➤ LAVA Limited Warranty

LAVASynC™ E for Samsung Mobile Devices

Mobile Devices: See the tested devices list
Power Supply: USB Charger/Power Supply with a USB-C connector, such as the power supply provided with the mobile device. Any regulated 5 volt power supply capable of at least 2 amperes can be used.

When using the optional Barrel Jack, an unregulated 12V up to 24V DC power supply is recommended

Measurements: Depth: 3.3 inches (83 mm)
Width: 3.8 inches (97 mm)
Height: 1.7 inches (44 mm)
Weight: 4.0 oz
APPLICATION

The LAVASync board is ideal for applications where a mobile device needs power and the ability to support USB accessories in a situation when power sequences cannot always be followed. If you intend to plug your mobile solution in and out of power often, this board will meet your installation requirements.

CABLES:

1 x USB-C to USB-C cable (up to 6.6 ft/2 m) to the mobile phone or tablet.

Note: The cable is not included.

PORTS/CONNECTORS:

1 x USB C port (the power input)
1 x RJ45 10/100 Ethernet port (LAN)
1 x USB C port (for mobile and tablet device connection)
1 x Device Link LED
1 x Charge Status LED
1 x Tablet USB Activity LED
1 x Ethernet Link/Activity Connect LED
OPTIONAL:
1 x Barrel (2mm) DC Output Connector (Center Pin Positive)
