Samsung USB-C Adapter with Simultaneous wired network and charging
LAVA Member of Samsung Alliance Program

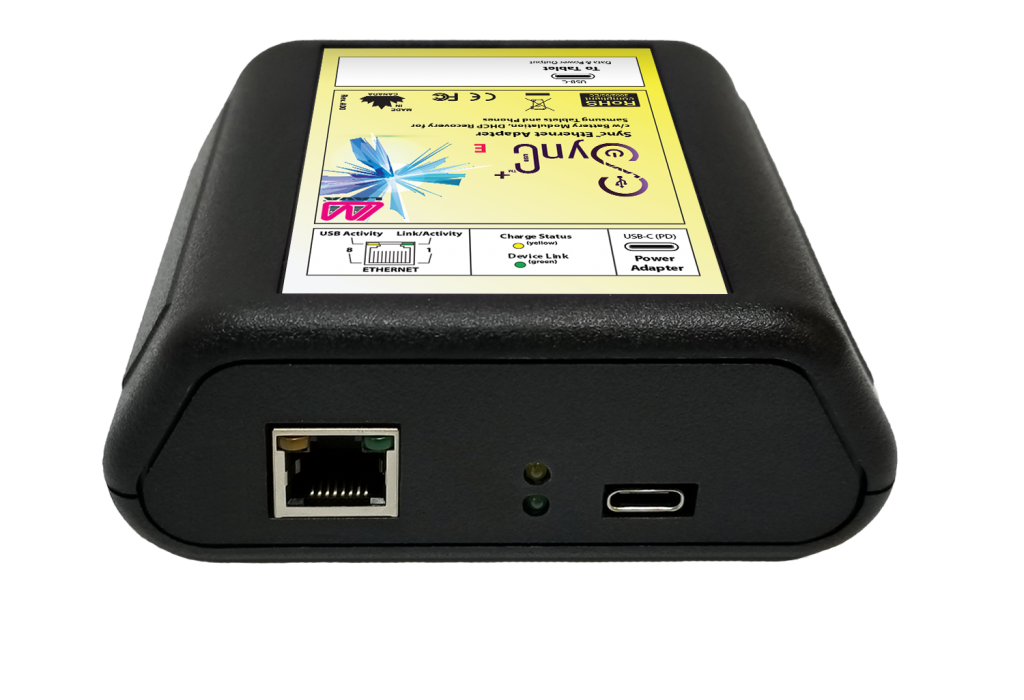

LAVASynC™+ E

SYNC™ ETHERNET ADAPTER WITH BATTERY MODULATION AND NETWORK RECOVERY

PRODUCT DESCRIPTION

The LAVASynC+ E is the second generation of our SimulCharge adapters and is designed specifically for USB-C type Samsung mobile phones and tablets.

This adapter provides a complete connectivity solution by using our custom SynC™ technology to simultaneously charge and support data while they are connected to a mobile phone or tablet. Featuring Ethernet, Battery Modulation technology, and improved network operation, the LAVASynC+ E adapter is ideal for commercial grade mobile applications.

Available with an optional built-in voltage converter that allows an external 9V up to 36V DC power supply to be placed up to 50 feet away from the tablet.

Sales Contact: sales@lavalink.com
Have a Question? Call: 1-800-241-5282 (US & Canada) or 1-416-674-5942

►►► SEE A LIST OF TESTED MOBILE DEVICES

Mobile Sync Technology for USB C

SYNC TECHNOLOGY

The LAVASynC+ adapters operate a mobile device in SynC mode. This technology allows the charging of the select USB-C type mobile phones and tablets while interacting with USB accessories.

BATTERY MODULATION

Battery modulation protects the tablet battery from overcharging to maximize your kiosk operational lifespan.

Samsung Ethernet Adapter

WIRED NETWORK

10/100 Fast Ethernet interface enhances the reliability and the security of the internet connection.

Samsung Network Recovery

NETWORK RECOVERY

Network Recovery Operation enables tablet recovery from failed attempts to connect to the network.

SCREEN BRIGHTNESS MANAGEMENT

LAVA Tablet Manager lets you control the brightness of the tablet based on the time of the day.

FEATURES

➤  Simultaneous USB host and charging for select Samsung mobile devices
➤  Battery Modulation to protect the mobile device battery from overcharging
➤  Support for installations running 24/7
➤  Wired Networking (10/100 Ethernet) support

➤ Stable network connectivity with Network Recovery feature
➤ Built-in Voltage Controller (OPTIONAL)
➤ Screen Brightness Management
➤ LAVA Limited Warranty

LAVASync Samsung Tablet Adapters with Battery Modulation

LAVASynC™+ E for Samsung Mobile Devices

Tablet: See the tested devices list
Power Supply: USB Charger/Power Supply with a USB-C connector, such as the power supply provided with the mobile device. Any regulated 5 volt power supply capable of at least 2 amperes can be used.

When using the optional Barrel Jack, an unregulated 12V up to 24V DC power supply is recommended

Measurements: Depth: 3.3 inches (83 mm)
Width: 3.8 inches (97 mm)
Height: 1.7 inches (44 mm) – with standoffs
Weight: 4.0 oz
POINT OF SALES
  • Product Catalogues
  • Price Checking
  • Line Busting & Ticketing
  • POS systems
  • Menus, order taking
  • Transportation & Logistics endpoints
  • Digital Signage
WORKFORCE MANAGEMENT
  • Conference RoomScheduling
  • Timecard
  • Dispatching
  • In-vehicle data capture
  • Virtual Concierge
  • Patient Check In
KNOWLEDGE SHARING
  • Web/Video conferencing
  • Trade Show Guides
  • Customer Surveys
  • Remote control
  • Way-finding
QUALITY CONTROL
  • Material tracking
  • Production
  • Scheduling

CABLES:

1 x USB C to USB C cable (up to 6.6 ft/2 m) to the mobile phone or tablet.

Note: The cable is not included.

PORTS/CONNECTORS:

1 x RJ45 10/100 Ethernet port (LAN)
1 x USB C port (for mobile phone or tablet connection)
1 x USB C port (the power input)
1 x Charge status LED
1 x Device Link LED
1 x Ethernet Link/Activity LED
1 x Tablet USB Activity LED
OPTIONAL:
1 x Barrel (2.0 mm) DC Output Connector (Centre Pin Positive)
